I. Basic Information

Name: Ms. Wang

Gender: Female

Age: 63

Chief Complaint: Missing right maxillary teeth; requesting implant‑supported restoration.

Past Medical History: Denies any systemic diseases, and no known food or drug allergies.

Present Dental History: Tooth loss in the right maxillary region affecting mastication; presented to our clinic for consultation.

II. Clinical Examination

Intraoral examination was performed.

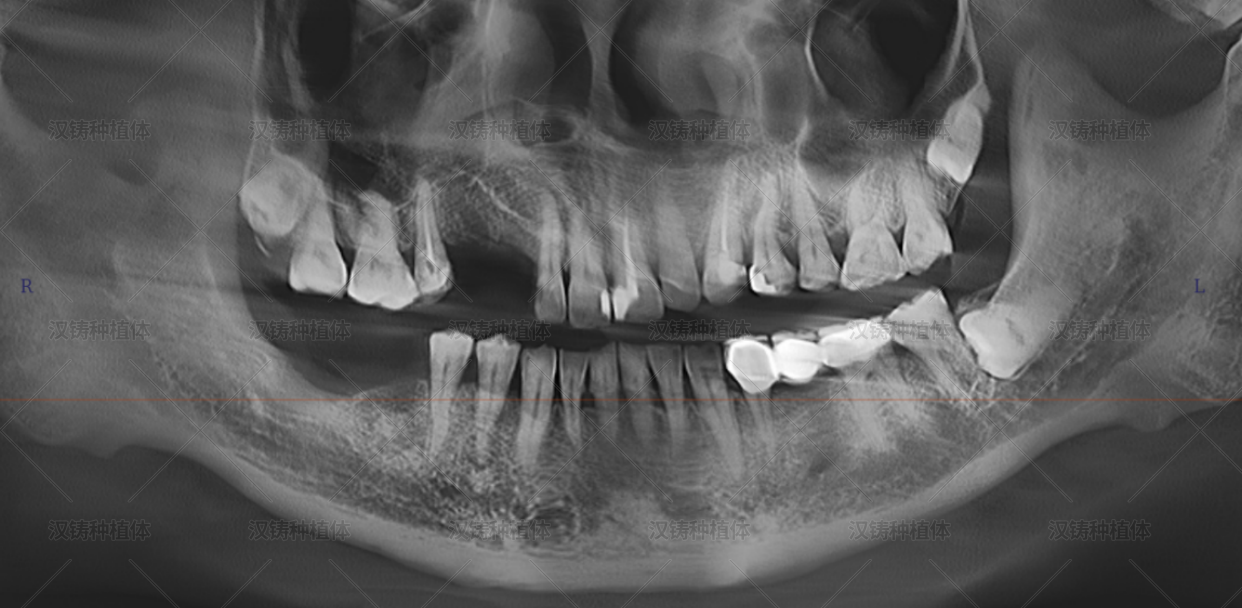

Radiographic examination was performed.

III. Diagnosis and Treatment Plan

Diagnosis: Missing right maxillary posterior teeth with insufficient alveolar ridge width and height.

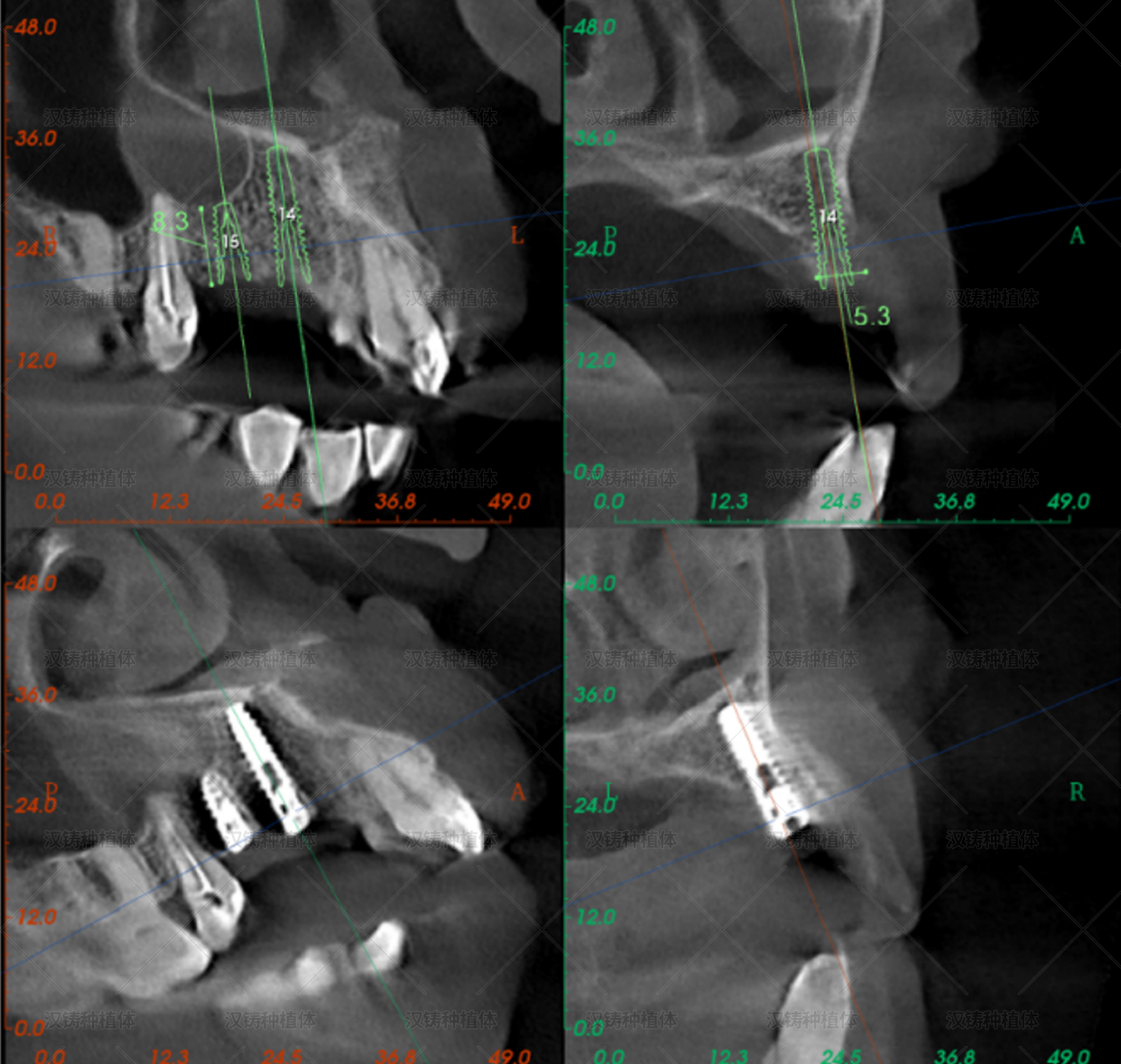

Treatment Plan: Restoration‑driven approach for the right maxillary sites, using two Hanzu® implants: one implant (size 3.5 × 15 mm) with buccal GBR, and one implant (size 3.5 × 8.5 mm) with internal sinus lift.

IV. Treatment Procedure

In December 2024, a buccal bone concavity was noted. A trephine bur (3.0 mm diameter) was used to harvest bone and prepare the osteotomy sites. Internal sinus floor elevation was performed, and autogenous bone was grafted buccally. Two Hanzu® implants were placed, followed by wound suturing.

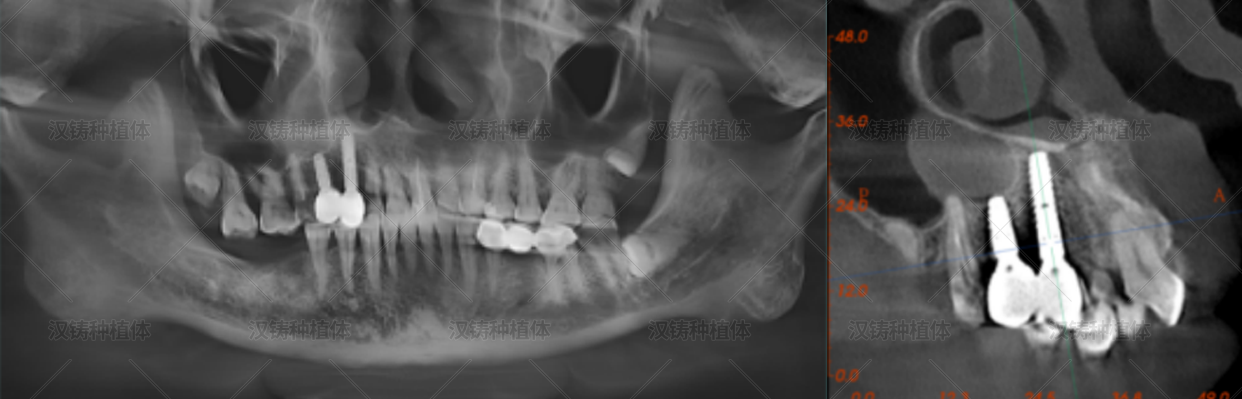

After 2.5 months, the prosthetic phase was initiated. The sites with internal sinus lift and buccal GBR demonstrated satisfactory stability.

V. Case Summary

This was a case of osteoporosis. The Hanzu® implant system exhibited strong self‑tapping capability, leading to a favourable clinical outcome.

VI. Clinician Profile

Name: Yan Guangdi

Affiliation/Title: Clinic Director

Honours and Achievements:

Attending Stomatologist (with intermediate qualifications in Prosthodontics and Dental Technology).

Member of the First Committee of the Oral Preventive Medicine Specialty Committee, Henan Preventive Medical Association.

Technical Director of Zhengzhou Yuemeijia Dental Laboratory.

Over 10 years of clinical experience in both dental practice and laboratory fabrication.

Has systematically received formal training in various implant systems from Switzerland, the United States, South Korea, etc., and obtained corresponding certificates; has been engaged in implant dentistry for more than eight years.

Specialises in endodontic therapy, aesthetic restorative dentistry, aesthetic porcelain laminate veneers, functional prosthetic rehabilitation, sinus floor elevation, immediate loading for edentulous arches, minimally invasive implant placement, and minimally invasive tooth extraction.
